Product Details:
• Place of Origin: Jiangsu China
• Brand Name: Pinyi
• Certification: ISO 9001, SGS
Payment & Shipping Terms:
• Minimum Order Quantity: 100 Meter
• Packaging Details: Carton packing or pallets
• Delivery Time: 5-20 Days after the payment
• Payment Terms: D/P, T/T
• Supply Ability: 100000 Meter/Month

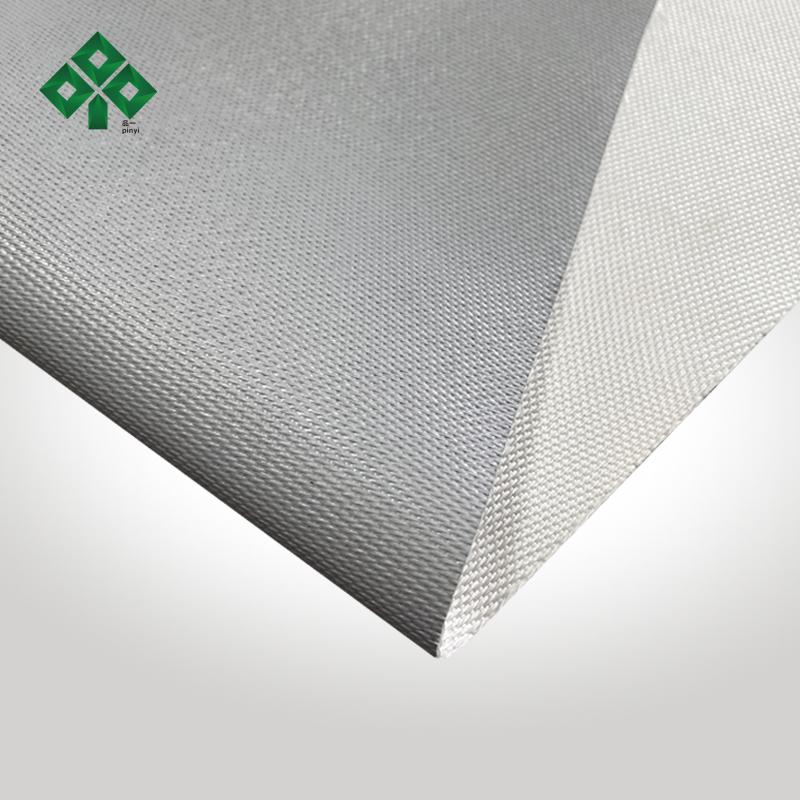

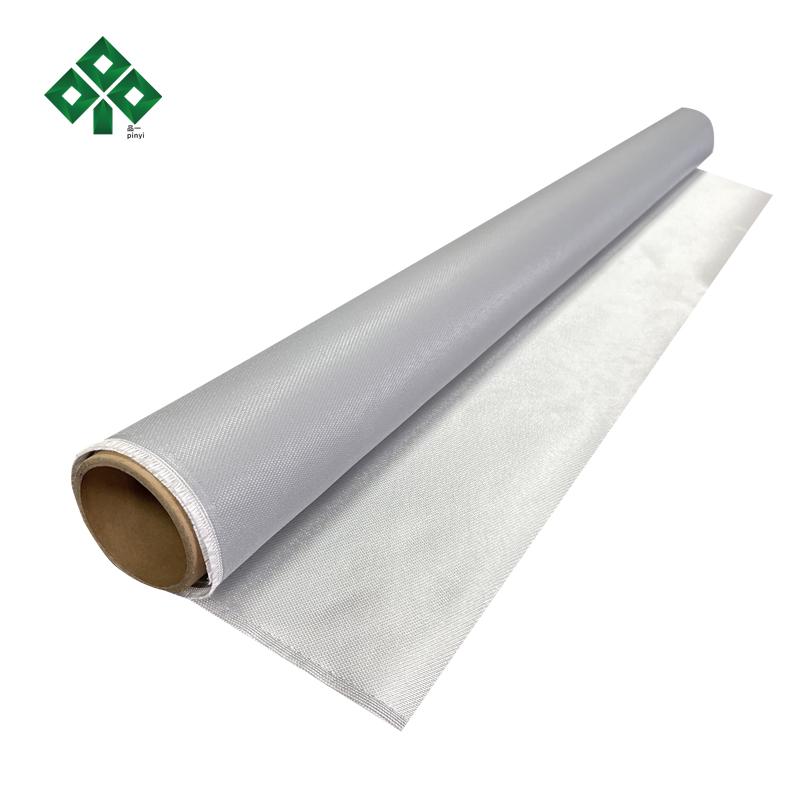

Silicone Coated High Silica Fiberglass Cloth is a high-silica glass fiber fabric-based material, on which a silicone fabric coating is applied, and then special processes are used to composite the surface to form a high-temperature resistant fabric. The base cloth of this product is a high silica cloth, its silicon dioxide (SiO2) content of 96%, the softening point is close to 1700℃, can be used at 900℃ for a long time, can work at 1450℃ for 10 minutes, and still maintain good condition at 1700℃ for 15 seconds. It has the characteristics of stable chemical properties, acid and alkali resistance, high temperature resistance and ablative resistance.The coating of silica gel on the high-silicon cloth can make the product have a better sealing effect, and the perfect combination of the two can be used for sealing and insulation under high temperature conditions.
| Product Name | Model | GSM g/㎡ |
thickness (mm) |
Woven | Amount of silica | Temperature（℃） |
| High silica glassfiber | BWS1250 | 1250±100 | 1.25±0.15 | 5/12 satin weave | ≥96% | 1000 |
| High silica glassfiber | BWS400C | 440±40 | 0.40±0.04 | 2/2twill | ≥96% | 1000 |
| High silica glassfiber | BWS620 | 620±60 | 0.60±0.10 | 3/8satin weave | ≥96% | 1000 |
| High silica glassfiber | BWS650 | 650±60 | 0.65±0.10 | 3/8satin weave | ≥96% | 1000 |
| High silica glassfiber | BWT260 | 240±20 | 0.26±0.026 | plain weave | ≥96% | 1000 |
| High silica glassfiber | BWT400 | 400±40 | 0.40±0.04 | plain weave | ≥96% | 1000 |
| Medium silica glassfiber | 800°C-W1250 | 1250±60 | 1.2±0.1 | satin weave | ≥65% | 800 |
| Medium silica glassfiber | 800°C-W500 | 500±25 | 0.60±0.1 | twill | ≥65% | 800 |
| Medium silica glassfiber | 800°C-W600 | 600±30 | 0.75±0.1 | satin weave | ≥65% | 800 |
| Medium silica glassfiber | 800°C-W730 | 730±36 | 0.75±0.1 | satin weave | ≥65% | 800 |
| Medium silica glassfiber | 800°C-W730 | 730±36 | 0.80±0.1 | twill | ≥65% | 800 |
| Medium silica glassfiber | 800°C-W800 | 800±40 | 1.00±0.1 | satin weave | ≥65% | 800 |
1. High temperature resistance 1000℃
2. Wind pressure resistance
3. Fire and non-combustible
4. Anti-aging
5. Good sealing
1. High temperature resistance, heat insulation, heat preservation, sealing material
2. High temperature ablative material
3. Fireproof materials (making fireproof clothing, fire curtains, fire blankets, escape blankets, etc.)
4. High temperature gas dust collection, liquid filtration
5. Metal melt filtration and purification
6. Car, motorcycle noise reduction, heat insulation, exhaust gas filtration
7. Welding gas cutting slag insulation protection material
8. Electrical insulation and fireproof material
9. High tensile strength, easy processing, wide use characteristics, is high temperature resistance, anti-ablation, anti-corrosion, heat insulation, heat preservation materials.
