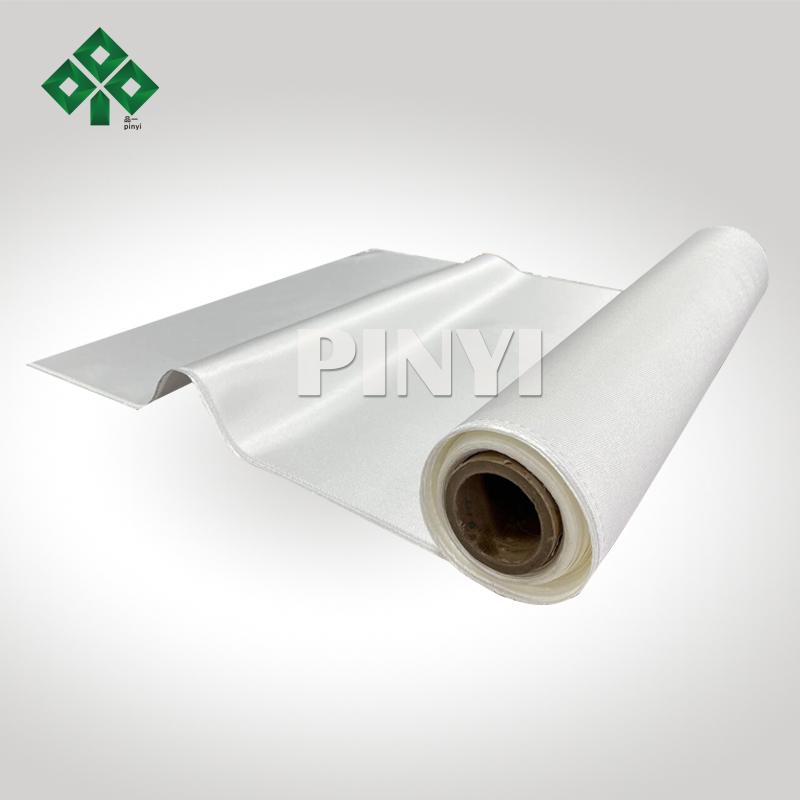

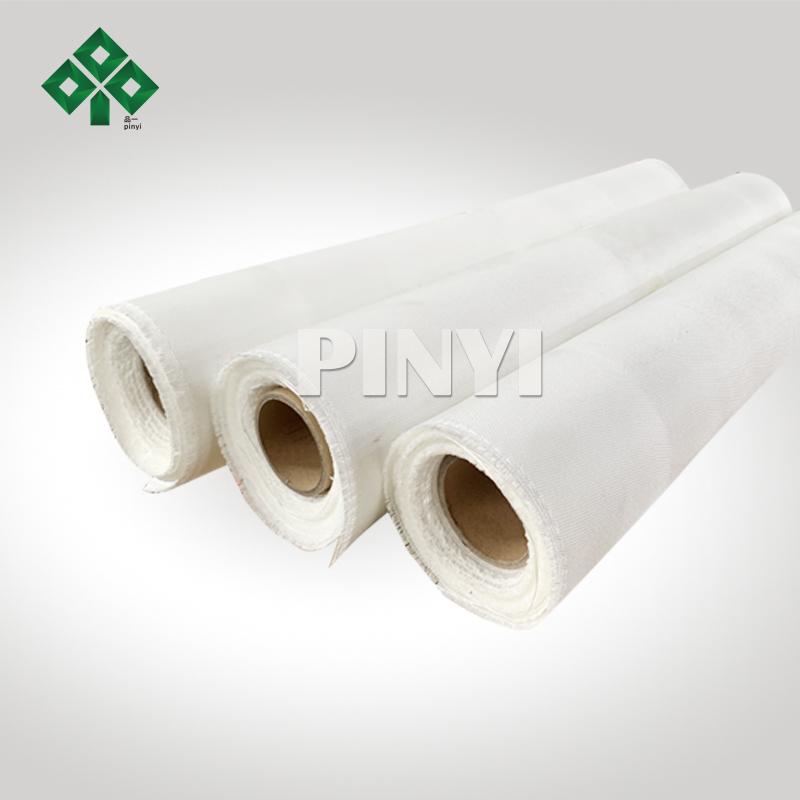

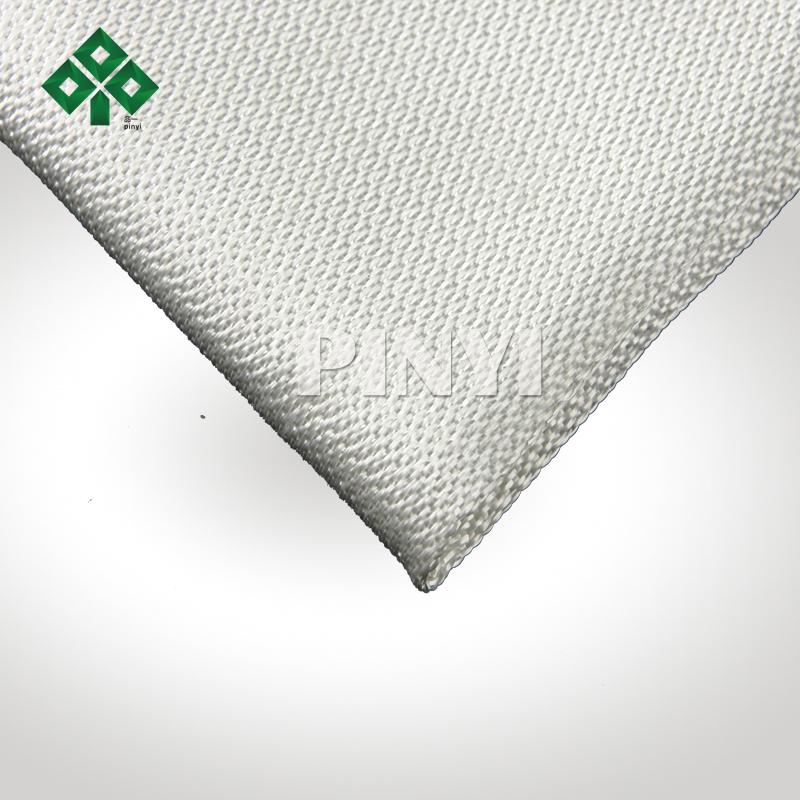

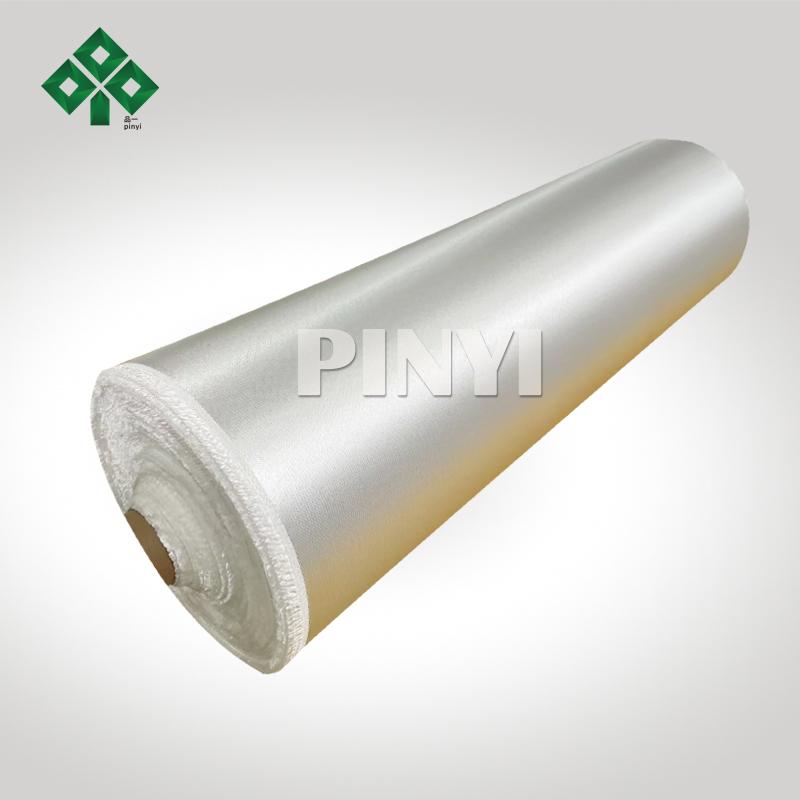

High Silica Fabric is professionally engineered useing over 96% high-purity silica as the core raw material. They boast outstanding ultra-high heat resistance, stable performance and excellent tensile strength, maintaining reliable durability and consistent performance in various severe high-temperature industrial scenarios.
High silica fiberglass fabric is a specialized, asbestos-free textile with over 96% pure silicon dioxide (SiO2) as its core component. Boasting outstanding high-temperature resistance, it stably handles continuous working temperatures up to 1000℃ and resists instant thermal surges as high as 1400℃. With excellent flame retardancy and thermal insulation.If the high silica fiberglass fabric is used as the base fabric and further processed, it can be coated with materials such as silicone gel, vermiculite, and PU, etc. Then its application fields will be even more extensive.
Unlike ordinary fiberglass cloth, flame-retardant cloth, ceramic fiber cloth, PINYI’s New Material high silica fiberglass fabric focuses on its features of high temperature resistance, high stability, high flexibility and adaptability, and precise cooling to solve the industrial high-temperature protection problems.
1.Extremely high temperature resistance performance
High silica fabric can withstand temperatures ranging from 1000°C to 1200°C for a long time, and its peak temperature resistance can reach up to 1700°C. It does not melt, shrink, carbonize or deform under high-temperature conditions, completely solving the problem of damage caused by high-temperature burning of ordinary fireproof fabric. It is suitable for extreme working conditions such as continuous high-temperature and instantaneous open flames.
2.High purity material, stable performance
The silicon dioxide content is ≥ 96%. It is a high-purity raw material. After being processed by a high-temperature curing process, the fabric structure is dense and uniform. The flame-retardant performance is stable and long-lasting. Its service life is 3 to 5 times that of ordinary fireproof fabric.
3.Good fire resistance performance, no safety risks.
The high silica fiberglass fabric has a fire resistance rating of V0. It will not catch fire when exposed to open flames and does not release toxic gases or harmful substances under high temperatures. It can prevent sparks from flying in the working environment, prevent the spread of fire, and perfectly adapt to the industrial fire protection scenarios.
4.Flexible and easy to process, suitable for various products

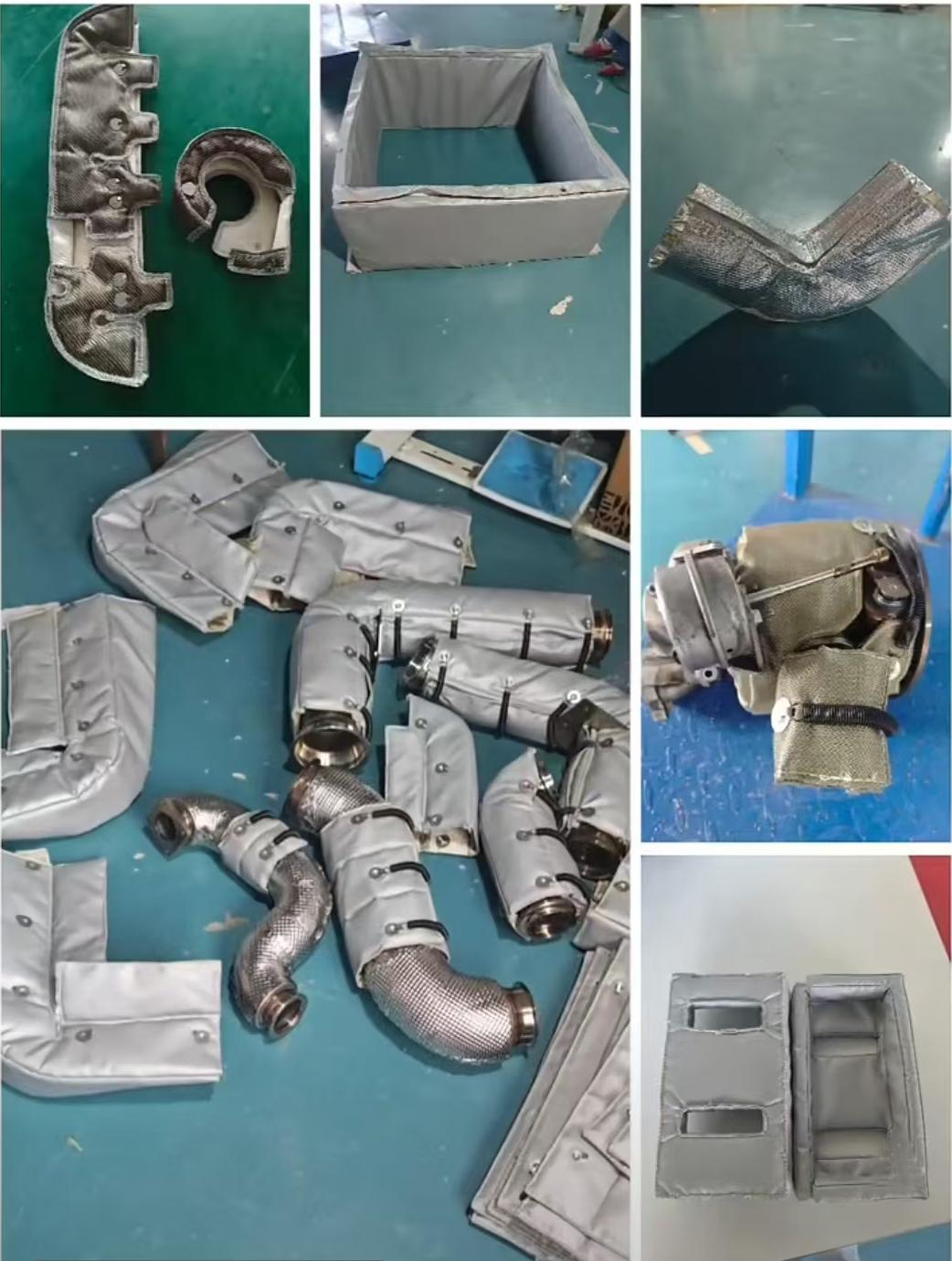

The high silica fiberglass fabric tape is soft and durable. It can be cut, wrapped, and sewn. Whether it’s for flat equipment, irregular pipes, or curved furnace bodies, it can be made into fireproof kits, heat insulation covers, fire curtains, and can be easily adapted to all these applications.
| Model | GSM g/㎡ |
thickness (mm) |
Woven | Amount of silica | Temperature（℃） |
| PINYI1250 | 1250±100 | 1.25±0.15 | 5/12 satin weave | ≥96% | 1000 |
| PINYI400C | 440±40 | 0.40±0.04 | 2/2twill | ≥96% | 1000 |
| PINYI620 | 620±60 | 0.60±0.10 | 3/8satin weave | ≥96% | 1000 |
| PINYI650 | 650±60 | 0.65±0.10 | 3/8satin weave | ≥96% | 1000 |
| PINYI260 | 240±20 | 0.26±0.026 | plain weave | ≥96% | 1000 |
| PINYI400 | 400±40 | 0.40±0.04 | plain weave | ≥96% | 1000 |
Jiangsu Pinyi New Materials Technology Co., Ltd. is a manufacturer specializing in the production of fiberglass and their products. The company has been in operation for over 10 years and is a new materials source manufacturer that integrates R&D, weaving, production, and processing.Specializing in all types of glass fiber fireproof and heat insulation products, we provide a one-stop service covering raw materials, processes, quality control, customization, delivery, and technical services.
