Description

Introduction to Flexible Duct Connectors:

The fireproof flexible connector is a type of pipe connector for fans, composed of galvanized sheet iron on both sides and canvas in the middle. The flexible duct connector possesses the properties of shock resistance, pressure resistance, temperature resistance, sealing, fire prevention and anti-aging.Different materials have different properties, and ultimately it depends on which type of flexilbe duct connector you use and whether it is suitable for the environment where it is to be installed.

Types and properties of materials:

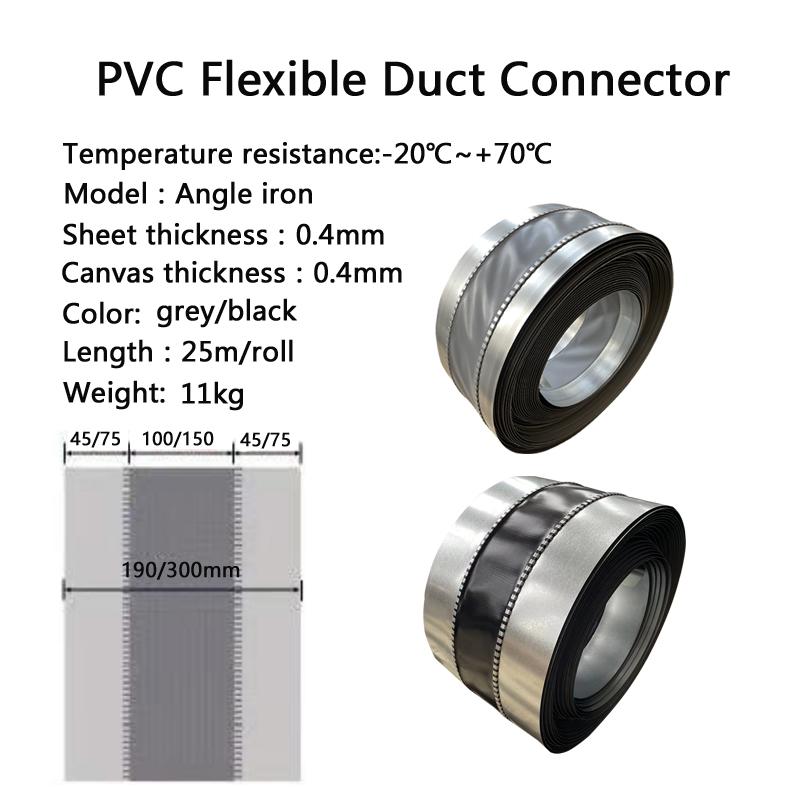

PVC flexible duct connector

Temperature resistance: -20 to +70 ℃

Advantages: The PVC coated fabric has the properties of sealing,

waterproofing, anti-aging, and being flexible and not prone to breaking.

Roll length: 25 m/roll. Customization is also available.

Application: Suitable for environments with low temperature resistance,

compared to air conditioning fans and fresh air units, etc.

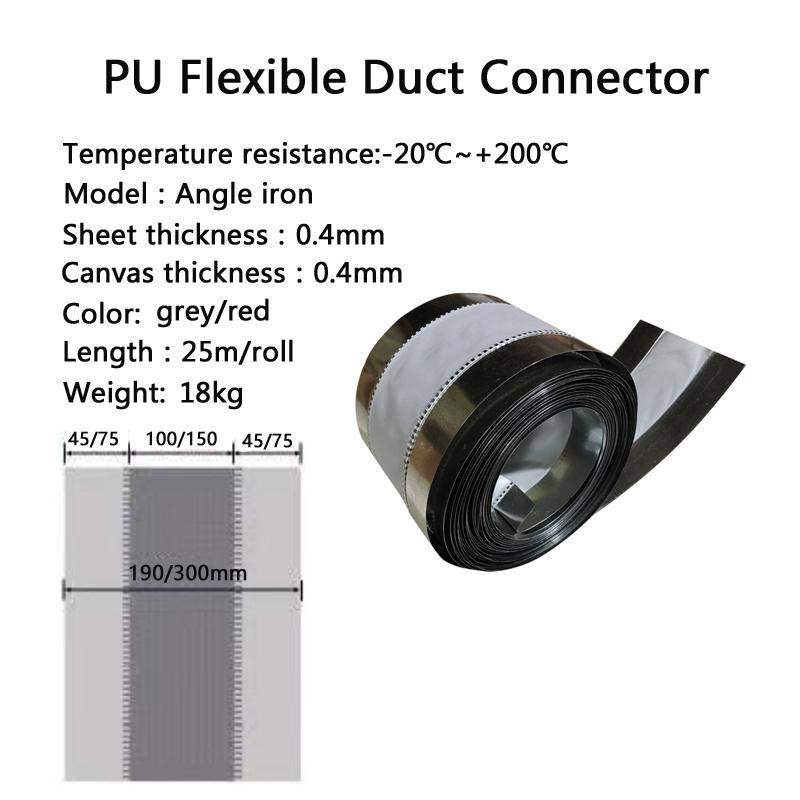

 PU flexible duct connector

Temperature resistance: -40 to +200 ℃

Advantages: The PU coated fiberglass cloth has the fireproof, resistant to high temperatures, anti-aging, wear-resistant

Roll length: 25 m/roll. Customization is also available.

Application: Applicable to air conditioning fans and other equipment

used in environments with higher temperature resistance.

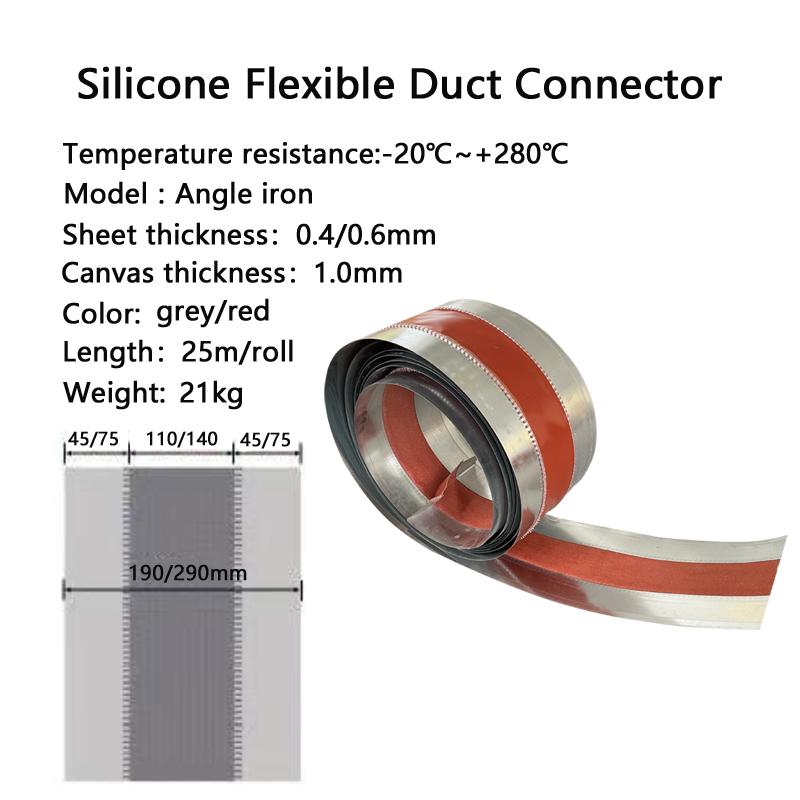

Silicone flexible duct connector

Temperature resistance: -40 to +280 ℃

Advantages:  The silicone rubber coated fiberglass fabric has the high temperature resistant, wind pressure resistant, anti-aging,

sealing, fireproof, waterproof

Roll length: 25 m/roll. Customization is also available.

Application: This component for the smoke exhaust fan unit with high

wind pressure has good sealing performance and anti-aging properties.

Product Superiority:

1.The quality is stable. Our factory has over 10 years of production experience. The materials for the flexible duct connectors have undergone multiple screenings, and we have selected the materials with stable quality and high cost-effectiveness for you.

2.Fast delivery speed.Our factory’s weekly output can reach over 25,000 meters. If it’s in a 20-foot container, we can deliver the goods for you within one week.

3.Price advantage. The physical factory produces and sells its own products, eliminating the price differences between the manufacturer and middlemen. You can enjoy a door-to-door shopping experience.

4.Specifications can be set. Support customization of size, thickness, color and carton. We can tailor it to your specific requirements.

5.Word-of-mouth has spread. PINYI New Material has accumulated years of industry production experience. We have collaborated with numerous clients and our products have been exported to over 20 countries in Southeast Asia, Africa, America, the Middle East, etc.

The Application of Flexible Duct Connector:

Suitable for household appliances such as dryers, range hoods, HVAC systems, etc.

FAQ – Frequently Asked Questions:

1.What are the common specifications of flexible duct connectors?

The commonly used specifications are: 45-75-45mm/45-65-45mm/75-75-75mm/45-100-45mm/45-140-45mm/75-100-75mm/75-140-75mm/75-200-75mm.

2.What level of fire resistance can the canvas achieve?

PVC can reach the V2 flame retardant level, PU can reach the V0 level, and silicone can reach the V1 level.

3.What is the thickness of the galvanized sheet iron sheet?

The thickness of the galvanized sheet iron is available in two options: 0.4mm and 0.6mm.
